Cleanascite™
제품명: Cleanascite™
용도: Lipid Removal & Clarification
메이커: Biotech Support Group
카달로그:


소개

BSG logo

Cleanascite™

생물학적 시료 지질 제거 및 정제 키트

지질, 세포 잔해 및 생물학적 불순물을 효과적으로 제거하는 고성능 Clarification Reagent

  • 염소화/불소화 탄화수소(Freon 등) 대체 가능
  • 항체, 단백질, 핵산 및 혈청 분석 workflow 지원
  • 높은 지질 결합력과 낮은 단백질/핵산 비특이 반응
  • 혈청, 복수, 세포 및 조직 배양액 clarification에 적합
  • 타액 및 분변(Fecal) 시료 처리 가능
  • Extracellular Vesicle 및 Exosome 제거 가능
  • 멤브레인 및 크로마토그래피 컬럼 수명 연장
  • 치료용 단백질 및 항체 다운스트림 공정 지원

Cleanascite™는 정제 전처리 단계에서 Cohn paste, 형질전환 우유(transgenic milk),난황(egg yolk) 및 다양한 생물학적 시료로부터 지질, 세포 잔해(cell debris),지단백질(lipoproteins), 부유 지방(floating fats) 및 기타 불순물(impurities)을선택적으로 제거합니다.

염용액(saline) 중에 현탁된 고체상 비이온성 흡착제(solid-phase, non-ionic adsorbent)형태로 제공되며, 별도의 준비 없이 바로 사용할 수 있습니다.시료에 첨가한 뒤 원심분리 및/또는 여과만 수행하면,정제된 상등액을 후속 공정이나 분석에 바로 사용할 수 있습니다.

Cleanascite™는 금속 산화물 유도체(metallic oxide derivatives)의 독자적 조성(proprietary formulation)을 기반으로 개발된 제품입니다.다른 금속 산화물과 달리 단백질과의 비특이적 결합이 크지 않아,지질에 대한 높은 선택성을 나타냅니다.

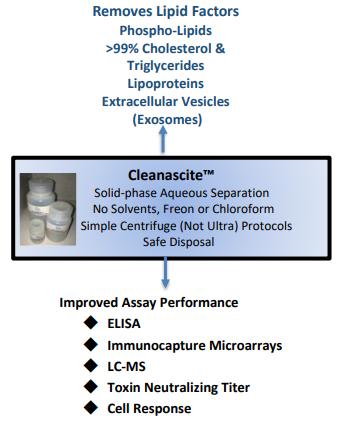

Cleanascite™는 인지질, 콜레스테롤, 중성지방,지단백질 및 Exosome과 같은 지질성 불순물을 효과적으로 제거합니다.복잡한 초원심분리 과정 없이 간단한 원심분리만으로 시료를 정제할 수 있으며,ELISA, LC-MS, 면역분석 등 다양한 downstream assay의 성능 향상에 도움을 줍니다.

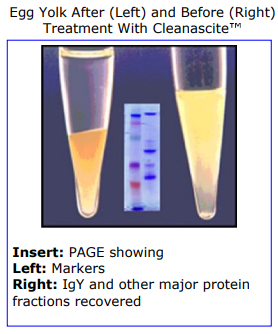

Cleanascite™ 처리 전(오른쪽)과 처리 후(왼쪽)의 난황(Egg Yolk) 시료 비교 이미지입니다.지질 및 불순물이 제거되면서 시료가 더욱 투명하게 정제되었으며,PAGE 분석 결과 주요 단백질 성분(IgY 포함)은 효과적으로 회수됨을 확인할 수 있습니다.
BSG logo

지질 매개 종양 면역억제 기전에 대한 새로운 통찰

Cleanascite™ Unlocks Insights into Lipid-Driven Tumor Immunosuppression

배경 (Background)

지질 대사는 종양 미세환경(TME, tumor microenvironment)을 형성하는 데 핵심적인 역할을 합니다. 지질은 단순히 암세포 성장의 에너지원으로 작용하는 데 그치지 않고, 종양 유래 지질이 주변의 기질세포와 면역세포를 재프로그래밍함으로써 면역억제와 질환 진행을 유도할 수 있습니다. 종양 관련 대식세포, 호중구, 섬유아세포는 모두 비정상적인 지질 축적의 영향을 받을 수 있으며, 이러한 변화는 종양 성장, 전이, 그리고 치료 저항성을 촉진합니다.

이러한 기전을 규명하기 위해서는 다른 세포 기능은 손상시키지 않으면서 지질만을 선택적으로 제거할 수 있는 도구가 필요합니다. 이를 통해 복잡한 세포 시스템 내에서 지질 특이적 영향만을 분리하여 분석할 수 있습니다.

과제 (Challenge)

2D 배양, 3D 스페로이드, 공동배양 시스템을 포함한 다양한 in vitro 암 모델은 종양 미세환경을 연구할 수 있는 유용한 플랫폼을 제공합니다. 그러나 이들 모델에서 지질이 미치는 정확한 기여도를 규명하는 것은 여전히 쉽지 않습니다.

연구자들은 다음 요건을 충족하는 방법을 필요로 합니다.

  • 종양 유래 상등액과 conditioned media 에서 지질을 효율적으로 제거할 수 있어야 합니다.
  • 비지질성 세포 신호와 세포 기능의 무결성을 유지할 수 있어야 합니다.
  • 면역세포 및 섬유아세포 공동배양을 포함한 다양한 암 모델에 쉽게 적용될 수 있어야 합니다.

해결 방안 (Solution)

Cleanascite™는 수성 현탁액(aqueous suspension) 기반의 시약으로, 생물학적 시료로부터 지질 및 지단백질을 선택적으로 제거하면서도 다른 세포 성분의 기능적 무결성을 유지할 수 있도록 설계되었습니다. 다른 지질 제거 방법과 달리, Cleanascite™ 는 in vitro 및 ex vivo 환경에서 지질 유도 기전을 연구할 수 있는 생리학적으로 적합한 접근법을 제공합니다. 이를 통해 연구자들은 지질에 의해 유도되는 효과를 보다 명확히 분리할 수 있었으며, 암에서의 면역억제성 신호 전달 기전에 대한 이해를 한층 더 발전시킬 수 있습니다.

적용 사례 (Case Examples)

1. 호중구 유래 면역억제

Study: Dahal et al. PNAS (2024)

Model: KCKO, E0771 + naïve neutrophils

Key Insight: Arg1 및 dcTrail-R1 발현 억제

Conclusion: 암세포 유래 지질은 면역억제성 재프로그래밍의 핵심 인자


2. 환경성 발암물질에 의한 콜레스테롤 대사 재프로그래밍

Study: Zhang et al. Oncogene (2024)

Model: MBP 노출 HepG2 세포

Key Insight: 대식세포 이동 및 M2 분극화 억제

Conclusion: 지질 의존적 종양 형성 촉진 기전 확인


3. 난소암 TAM 분극화

Study: Chan et al. (2022)

Key Insight: Lipid droplet 및 ROS 감소, YAP1 회복


4. HCC에서 oxLDL 기반 TAM 유도

Study: Chu et al. Nature Communications (2025)

Key Insight: TREM2 및 SPP1 발현 감소


5. 섬유아세포 매개 글루타민 합성 유도

Study: Li et al. JEM (2025)

Key Insight: IL-6 및 글루타민 합성 경로 감소

summary

암 면역대사 연구에서 Cleanascite™의 활용

지질을 선택적으로 정밀하게 제거할 수 있도록 함으로써, Cleanascite™ 는 암 면역대사(cancer immunometabolism) 연구에서 필수적인 시약으로 자리잡고 있습니다. 다양한 연구에서의 활용 사례는 종양 미세환경(TME) 내 지질 유도성 신호를 분리하여 분석하는 것이 종양 진행과 면역 회피를 매개하는새로운 기전을 규명하는 데 얼마나 중요한지를 보여줍니다.



지질 대사는 암 생물학에서 핵심적인 조절 축으로 부상하고 있습니다. Cleanascite™ 와 같은 시료 전처리 도구는 연구자들이 다음과 같은 연구를 수행할 수 있도록 지원합니다.



  • 종양-면역 세포 간 상호작용에서 지질 특이적 기여를 규명할 수 있습니다.
  • 지질 유도성 면역억제를 차단할 수 있는 치료 표적을 발굴할 수 있습니다.
  • 교란 변수를 제거함으로써 전임상 암 모델의 해석력과 신뢰성을 향상시킬 수 있습니다.
  •

    지질 대사가 암 진행에 미치는 역할을 입증하는 연구가 지속적으로 축적됨에 따라, Cleanascite™ 는 향후 환자 예후 개선으로 이어질 수 있는 새로운 발견을 촉진하는 데 중요한 도구로 활용 됩니다.






    사양

    13. Cleanascite_사양.PNG

    주문정보

    13. Cleanascite_주문정보.PNG

    관련자료

    References

    Omental conditioned medium (OCM)

    Chen, Rain R., et al. "Targeting of lipid metabolism with a metabolic inhibitor cocktail eradicates peritoneal metastases in ovarian cancer cells." Communications Biology 2 (2019).

    Astrocytes


    Nguyen, Amanda. "HDLs and LDLs in the Brain: Characterizing the Lipid Secretome of Astrocytes." The FASEB Journal 31.1_supplement (2017): 948-3.


    Human serum, mouse serum or DMEM



    Lee, Hong-Jai, et al. "Regulatory effect of humoral milieu on the viral DNA and surface antigen expression of hepatitis B virus (HBV) in vitro. " Molecular & Cellular Toxicology 15.2 (2019): 123-128.


    Noncirculating Biological Fluids


    Sprenkle, Neil T., et al. "Endoplasmic reticulum stress is transmissible in vitro between cells of the central nervous system." Journal of neurochemistry 148.4 (2019): 516-530.

    Whole mouse serum

    Dean, E. Danielle, et al. "Interrupted glucagon signaling reveals hepatic α cell axis and role for L-glutamine in α cell proliferation." Cell metabolism 25.6 (2017): 1362-1373.



    Plasma

    Swertfeger, Debi K., et al. "Feasibility of a Plasma Bioassay to Assess Oxidative Protection of Low Density Lipoproteins by High Density Lipoproteins." Journal of Clinical Lipidology (2018).


    Estrous sheep serum

    Barrera, Natalibeth, Pedro C. dos Santos Neto, Federico Cuadro, Diego Bosolasco, Ana P. Mulet, Martina Crispo, and Alejo Menchaca. "Impact of delipidated estrous sheep serum supplementation on in vitro maturation, cryotolerance and endoplasmic reticulum stress gene expression of sheep oocytes." PloS one 13, no. 6 (2018): e0198742.


    Extracellular vesicles (EVs) from bone marrow (BM)-derived mesenchymal stromal cells (BM-MSC)

    Nguyen, Doan C., Holly C. Lewis, Chester Joyner, Vivien Warren, Haopeng Xiao, Haydn T. Kissick, Ronghu Wu, Jacques Galipeau, and F. Eun-Hyung Lee. " Extracellular vesicles from bone marrow-derived mesenchymal stromal cells support ex vivo survival of human antibody secreting cells." Journal of extracellular vesicles 7, no. 1 (2018): 1463778.


    Cell wall preparations

    Li, J. (2015). Isolation and Preliminary Characterization of Anti-Inflammatory Molecules from the Staphylococcal Cell Wall (Doctoral dissertation, McGill University).


    Pancreatic Rough Endoplasmic Reticulum (RER) Fractions

    Waldron, R. T., Su, H. Y., Piplani, H., Capri, J., Whitelegge, J. P., Faull, K. F., ... & Freeman, M. R. (2018). Ethanol Induced Disordering of Pancreatic Acinar Cell Endoplasmic Reticulum: An ER Stress/Defective Unfolded Protein Response Model. Cellular and Molecular Gastroenterology and Hepatology , 5(4), 479-497.


    Cells and bacterial lysates

    Ahmed, Syed Mukhtar, and Ian G. Macara. "The Par3 polarity protein is an exocyst receptor essential for mammary cell survival." Nature Communications 8 (2017).

    Human SZ95 sebocytes

    Lovászi, M., et al. "Sebum lipids influence macrophage polarization and activation." British Journal of Dermatology (2017). doi: 10.1111/bjd.15754


    Ascites Fluid

    Chan, DW, Mak, SL, Ngan, HYS. The significance of lipid metabolism in peritoneal metastases of ovarian cancer. The 2016 Cold Spring Harbour Asia Conference on Cancer and Metabolism, Suzhou, China, 19-23 September 2016. http://hub.hku.hk/handle/10722/235385

    Serum

    Taylor, Steven W., et al. "A high-throughput mass spectrometry assay to simultaneously measure intact insulin and C-peptide." Clinica Chimica Acta (2016).

    Serum or Blood

    Berggren, Per Olof, and Shao-Nian Yang. "Methods for treating and/or limiting development of diabetes." U.S. Patent Application No. 14/995,341.


    Bile

    Vesterhus, Mette, et al. "Novel serum and bile protein markers predict primary sclerosing cholangitis disease severity and prognosis." Journal of hepatology 66.6 (2017): 1214-1222.

    Hauser-Davis, Rachel Ann. "Fish Bile Clean-up for Subsequent Zymography and Mass Spectrometry Proteomic Analyses." (2018).

    Vesterhus, Mette, et al. " Novel serum and bile protein markers predict primary sclerosing cholangitis disease severity and prognosis." Journal of Hepatology 66.6 (2017): 1214-1222.

    Laohaviroj, Marut, et al. " A comparative proteomic analysis of bile for biomarkers of cholangiocarcinoma." Tumor Biology 39.6 (2017): 1010428317705764.

    Vesterhus, Mette, Anders Holm, Johannes Roksund Hov, Ståle Nygård, Erik Schrumpf, Espen Melum, Liv Wenche Thorbjørnsen et al. " Novel serum and bile protein markers predict primary sclerosing cholangitis disease severity and prognosis." Journal of Hepatology (2017).

    Megger, Dominik A., et al. "One Sample, One Shot-Evaluation of sample preparation protocols for the mass spectrometric proteome analysis of human bile fluid without extensive fractionation." Journal of Proteomics (2016).

    Lukic, Natalija, et al. " An integrated approach for comparative proteomic analysis of human bile reveals overexpressed cancer-associated proteins in malignant biliary stenosis." Biochimica et Biophysica Acta (BBA)-Proteins and Proteomics 1844.5 (2014): 1026-1033.

    Danese, Elisa, et al. " Assessment of bile and serum mucin5AC in cholangiocarcinoma: Diagnostic performance and biologic significance."Surgery (2014).

    Farina, Annarita, et al. " Bile carcinoembryonic cell adhesion molecule 6 (CEAM6) as a biomarker of malignant biliary stenoses." Biochimica et Biophysica Acta (BBA)-Proteins and Proteomics (2013).

    Boschetti, Egisto, and Pier Giorgio Righetti. Low-Abundance Proteome Discovery: State of the Art and Protocols. Newnes, 2013.

    Wang W, Ai KX, Yuan Z, Huang XY, Zhang HZ. Different Expression of S100A8 in Malignant and Benign Gallbladder Diseases.Digestive diseases and sciences. 2012.

    Hauser-Davis RA, Lima AA, Ziolli RL, Campos RC. First-time report of metalloproteinases in fish bile and their potential as bioindicators regarding environmental contamination. Aquatic Toxicology.2012;110-111:99-106

    Farina A, Dumonceau JM, Frossard JL. Proteomic Analysis of Human Bile from Malignant Biliary Stenosis Induced by Pancreatic Cancer Journal of Proteome Research.2009; 8(1):159-69

    Guerrier L, Claverol S, Finzi L et al. Contribution of solid-phase hexapeptide ligand libraries to the repertoire of human bile proteins. Journal of Chromatography.2007;1176(1-2):192-205

    Chen Bo, Zheng Jian-wei, Wang Jian-ming, et al. Establishment and preliminary analysis of a 2-D human biliary map Chinese Journal of Hepatobiliary Surgery.2007

    Chen B, Dong JQ, Chen YJ et al Two-dimensional electrophoresis for comparative proteomic analysis of human bile. Hepatobiliary & pancreatic diseases international.2007 Aug;6(4):402-6

    Guerrier L, Claverol S, Finzi L et al Contribution of solid-phase hexapeptide ligand libraries to the repertoire of human bile proteins.Journal of Chromatography A.2007;1176(1-2):192-205

    Kristiansen TZ, Bunkenborg J, Gronborg M et al A Proteomic Analysis of Human Bile Molecular and Cellular Proteomics.2004;3:715-728


    Biological Matrices

    Graeme T Clark, Paul J Russell, and Steven Westwood. Modification without impact: a case study in clinical assay failure due to lipemia. Bioanalysis; 2012: 4,(12):1421-1428


    Egg Yolk

    Ben Wade, Michelle Cummins, Anthony Keyburn and Tamsyn M. Crowley. Isolation and detection of microRNA from the egg of chickens. BMC Research Notes 2016 9:283.


    Organ Homogenates

    Myerson, J., He, L., Lanza, G., Tollefsen, D. and Wickline, S. Thrombin-inhibiting perfluorocarbon nanoparticles provide a novel strategy for the treatment and magnetic resonance imaging of acute thrombosis. Journal of Thrombosis and Haemostasis.2011;9:1292-1300

    Thakuria D, Schmidt O, Liliensiek AK. Field preservation and DNA extraction methods for intestinal microbial diversity analysis in earthworms. Journal of Microbiological Methods.2009;76(3):226-33

    Cheng AM, Moore EE, Masuno T et al Normal Mesenteric Lymph Blunts the Pulmonary Inflammatory Response to Endotoxin. Journal of Surgical Research.2006;136(S2):166-171

    McNally T, Mackie IJ, Machin SJ et al. Increased levels of beta 2 glycoprotein I antigen and beta 2 glycoprotein I binding antibodies are associated with a history of thromboembolic complications in patients with SLE and primary antiphospholipid syndrome British journal of rheumatology.1995 Nov;34(11):1031-6


    Red Blood Cells

    Antunes RF; Brandao C; Maia M; Arosa FA. Red blood cells release factors with growth and survival bioactivities for normal and leukemic T cells. Immunology and Cell Biology.2011;89(1):111-21


    Tracheal Swab Samples

    Li D, Wang J, Wang R, Li Y. A nanobeads amplified QCM immunosensor for the detection of avian influenza virus H5N1, Biosensors and Bioelectronics.2011;26(S10):4146-4154

    Fu LM, Shinnick TM. Genome-wide exploration of the drug action of capreomycin on Mycobacterium tuberculosis using Affymetrix oligonucleotide GeneChips Journal of Infection.2007;54(S3):277-284

    Fu LM, Shinnick TM. Genome-wide analysis of intergenic regions of mycobacterium tuberculosis H37Rv using affymetrix genechips. EURASIP journal on bioinformatics & systems biology.2007:23054


    Tissue and Cell Culture

    United States Patent Application 20170348398 entitled: " COMPOSITIONS AND METHODS FOR DECREASING BLOOD GLUCAGON LEVELS”

    Ahmed, Syed Mukhtar, and Ian G. Macara. " The Par3 polarity protein is an exocyst receptor essential for mammary cell survival." Nature Communications 8 (2017): 14867. doi:10.1038/ncomms14867

    Alhamdani MS, Schroder C, Hoheisel JD. Analysis conditions for proteomic profiling of mammalian tissue and cell extracts with antibody microarrays. Proteomics.2010;10(17):3203-7

    Czambel RK, Kharlamov A, Jones SC. Variations of brain endothelial nitric oxide synthase concentration in rat and mouse cortex.Nitric Oxide.2010;22(S1): 51-57


    Plasma/Serum

    McIntyre, John A., et al. " Antiphospholipid autoantibodies as blood biomarkers for detection of early stage Alzheimer's disease." Autoimmunity0 (2015): 1-8.

    Knight, Jason S., Wei Luo, Alexander A. O'Dell, Srilakshmi Yalavarthi, Wenpu Zhao, Venkataraman Subramanian, Chiao Guo et al. " Peptidylarginine Deiminase Inhibition Reduces Vascular Damage and Modulates Innate Immune Responses in Murine Models of Atherosclerosis." Circulation research (2014): CIRCRESAHA-113.

    Palekar, Rohun U., et al. " Thrombin-Targeted Liposomes Establish A Sustained Localized Anticlotting Barrier Against Acute Thrombosis." Molecular pharmaceutics (2013).

    Lijowski M, Caruthers S, Hu G. High-Resolution SPECT-CT/MR Molecular Imaging of Angiogenesis in the Vx2 Model Investigative Radiology.2009;44(1): 15–22

    Turner JD, Langley RS, Johnston KL. Wolbachia Lipoprotein Stimulates Innate and Adaptive Immunity through Toll-like Receptors 2 and 6 to Induce Disease Manifestations of Filariasis The Journal of Biological Chemistry.2009;284:22364-22378

    Torrelles JB, DesJardin LE, MacNeil J. et al Inactivation of Mycobacterium tuberculosis mannosyltransferase pimB reduces the cell wall lipoarabinomannan and lipomannan content and increases the rate of bacterial-induced human macrophage cell death Glycobiology.2009;19(7):743-755

    Cho N, Chueh PJ, Kim C et al Monoclonal antibody to a cancer-specific and drug-responsive hydroquinone (NADH) oxidase from the sera of cancer patients. Cancer Immunology, Immunotherapy. 2002;51(3):121-9

    Shapiro S, Beenhouwer DO, Feldmesser M et al. Immunoglobulin G Monoclonal Antibodies to Cryptococcus neoformans Protect Mice Deficient in Complement Component C3 Infect. Infection and immunity.2002;70(5):2598-604

    Castro AR, Morrill We, Pope V. Lipid Removal from Human Serum Samples Clinical and diagnostic laboratory immunology.2000;7(2):197-199

    Nussbaum G, Cleare W, Casadevall A et al Epitope Location in the Cryptococcus neoformans Capsule Is a Determinant of Antibody Efficacy The Journal of experimental medicine.1997;185:685-694


    Nanoparticles

    Human & Plasma Cell Lines.  Pan, Dipanjan, et al. "A strategy for combating melanoma with oncogenic c-Myc inhibitors and targeted nanotherapy." Nanomedicine 10.2 (2015): 241-251.

    Plasma-Enzyme-Nanoparticle Mixture.  Pan, Dipanjan, et al. "Anti-Angiogenesis Therapy in the Vx2 Rabbit Cancer Model with a Lipase-cleavable Sn 2 Taxane Phospholipid Prodrug using αvβ3-Targeted Theranostic Nanoparticles." Theranostics 2014; 4(6):565-578


    Microarray

    Srinivasan, Harish."Antibody microarray as a proteomic tool for effective diagnosis and prediction of prognosis in cancer."(2014).


    Saliva

    Lucy E. DesJardin Isolation of M. tuberculosis RNA from Sputum Methods in Molecular Medicine.2001;48:133-139

    Beenhouwer DO, Shapiro S, Feldmesser M et al. Both Th1 and Th2 Cytokines Affect the Ability of Monoclonal Antibodies To Protect Mice against Cryptococcus neoformans Infection and immunity.2001;69: 6445-6455

    Desjardin LE, Perkins MD, Wolski K et al. Measurement of Sputum Mycobacterium tuberculosis Messenger RNA as a Surrogate for Response to Chemotherapy American journal of respiratory and critical care medicine.1999;160(1):203-10

    Template Preparation Production Sequencing Protocols. Stanford Genome Technology Center


    Patents

    Shiffman, Dov, et al. " Methods for quantitation of insulin and c-peptide." U.S. Patent Application No. 15/942,188.

    Iwakura Yoichiro, Kakuta Shigeru, Suzuki, Shunsuke - United States Patent Application 20130011413. Method and Pharmaceutical Composition for Treatment of Intestinal Disease

    Mcintyre, John A. United States Patent: 20120107841. Serum Diagnostic Method, Biomarker and Kit for Early Detection and Staging of Alzheimer's Disease

    Morre, James D et al. United States Patent: 20030170757. Monoclonal antibodies specific for neoplasia-specific NADH: disulfide reductase

    DJ Morre, NM McCarty, D Morre et al United States Patent: 7053188. Monoclonal antibodies specific for neoplasia-specific NADH: disulfide reductase

    David C. Jones. United States Patent: 7999084. Devices and methods for reducing matrix effects

    J Krupey - United States Patent: 5885921 Hydrophobic silica adsorbents for lipids


    Vaccine Research (Cholesterol Removal From Human Serum)

    Kamtchoua, Thierry, Monica Bologa, Robert Hopfer, David Neveu, Branda Hu, Xiaohua Sheng, Nicolas Corde, Catherine Pouzet, Gloria Zimmerman, and Sanjay Gurunathan. Safety and immunogenicity of the pneumococcal pneumolysin derivative PlyD1 in a single-antigen protein vaccine candidate in adults.Vaccine (2012).
