SepaBean® machine T
제품명: SepaBean® machine T
용도: FLASH System
메이커: Santai Technologies
카달로그:


소개


SepaBean® machine T      플래시 크로마토그래피 시스템



세파빈™ 컨트롤 소프트웨어의 기능을 모두 담고 있는 경제적인 모델로 2개의 용매 라인을 연결한 Binary gradient 가 가능

합니다. 최대 200 Psi 까지 사용 가능하며, 세라믹 펌프(ceramic pump)가 적용되어 높은 정확도와 별도의 유지 보수를

필요로 하지 않습니다.



DAD Variable UV (200-400nm)와 Visible (400-800nm) 의 선택이 가능하며, 추가로 ELSD 를 연결하여 사용할 수 있습니다.

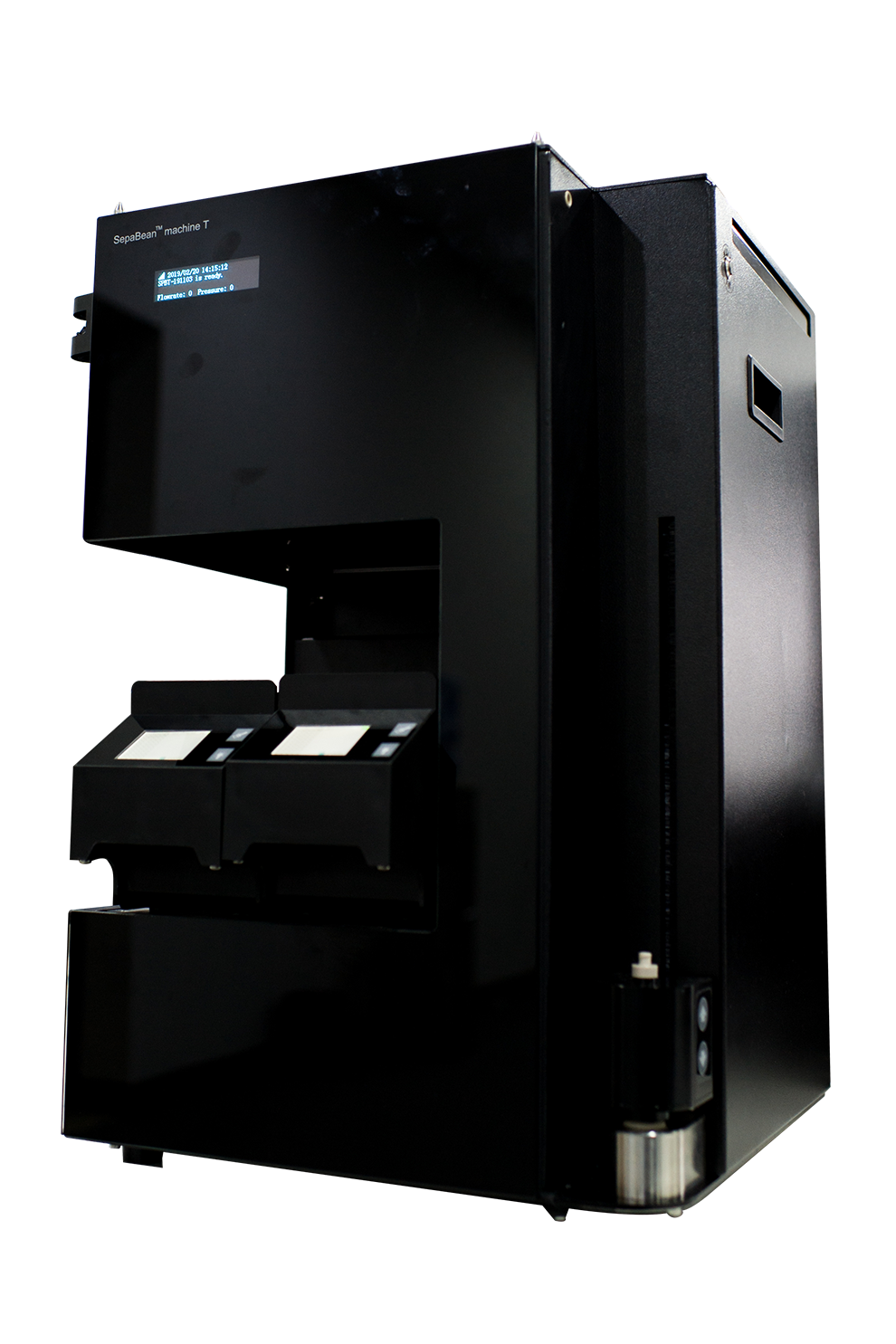

[메인] SepaBeanT.png



Features of SepaBean® machine






● Wireless Operation Through Mobile Devices


The flexible wireless control method is especially suitable for separation experimentsthat need to be protected from light

or placed in an isolator.





● Power Failure Recovery


The built-in power-off recovery function in the software minimizes the loss caused by accidental power failure.







● Smart Column Holder


Column holder with touchpad could achieve automatic fixing of the flash column.*





● Separation Method Recommendation


The software has a built-in separation method database that automatically recommends the most appropriate separation method based on the key information entered by the user, thereby improving work efficiency.








● Fraction Collector


Tube racks with LCD display enable users to easily track the tubes containing collected fractions.







● Local Network Data Sharing


Multiple instruments could form a local area network to facilitate internal data sharing and resourceoptimization in the laboratory.






● RFID Technology


Automatic identification of current flash column information based on RFID technology, facilitatingthe use and

maintenance of the columns.**







● 21-CFR Part 11 Compliance


The control software complies with FDA requirements for system safety (21-CFR Part 11), making theinstrument more

suitable for pharmaceutical R&D companies and laboratories.




사양

Model   SepaBean machine T
Flow Range   1 - 200 mL/min
Maximum Pressure   200 psi (13.8 bar)
Pumping System   Highly accurate, maintenance free ceramic pump
Gradients   Two solvents, binary
Detector   DAD variable UV (200 - 400 nm) or

DAD vairable UV (200 - 400 nm) + Vis (400 - 800 nm) or

Evaporative Light Scattering Detection (ELSD)

Sample Loading Capacity   10 mg - 33 g
Column Sizes   4 g - 330 g, up to 3 kg with adapters



※  기타 규격

 •   Gradient types : isocratic, linear, step

 •   Flowcell optical path length : 0.3 mm (default); 2.4 mm (optional)

 •   Spectral display : single/dual/all-wavelengths*

 •   Sample loading metmethod : manual load

 •   Fraction collection method : all, waste, threshold, slope, time

 •   Fraction collector

     - Standard : tubes (13 mm, 15 mm,18 mm, 25 mm)

     - Optional : Frencth square bottle (250 mL, 500 mL) orlarge collection bottle; Customizable collection container

 •   Control device : wireless operation through mobile devices**

 •   Certificate : CE, cTUVus (in process)



 * 전체 파장 스캐닝 기능은 SepaBeanmachine U 와 T 에는 적용 되어 있지 않습니다.

 ** RFID 모듈은 SepaBean™machine U 와 T 에는 적용 되어 있지 않습니다.


주문정보

Item Number  Description
SPB02000150-1  Valveless metering pump, 2  solvent lines, binary gradient,

200-400nm DAD UV detector, Max pressure  200psi, Max flow rate 150mL/min

SPB02000150-2  Valveessmetering pump, 2 solvent lines, binary gradient,

200-800nm DAD UV detector, Max pressure 200psi, Max flow rate 150mL/min
