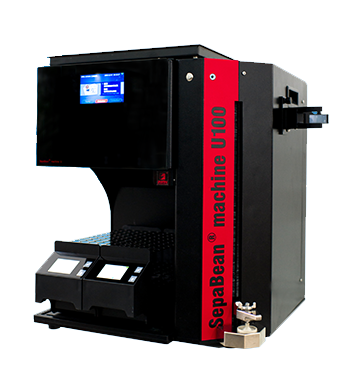

SepaBean® machine U      플래시 크로마토그래피 시스템



세파빈™ 컨트롤 소프트웨어의 기능을 모두 담고 있는 가장 경제적인 엔트리 모델로 2개의 용매 라인을 연결한 Binary gradient 가 가능 합니다.

최대 압력 200 Psi 지원 가능한 모델(U200)과 최대 압력 100 Psi 지원 가능한 모델(U100) 이 있습니다. 해당 모델 모두 세라믹 펌프(ceramic

pump)가 적용되어 높은 정확도와 별도의 유지 보수를 필요로 하지 않습니다.



254nm 고정 파장 혹은 DAD Variable UV (200-400nm)와 Visible (400-800nm) 간의 선택이 가능 합니다.



Features of SepaBean® machine





● Wireless Operation Through Mobile Devices

The flexible wireless control method is especially suitable for separation experimentsthat need to be protected from light

or placed in an isolator.



● Power Failure Recovery

The built-in power-off recovery function in the software minimizes the loss caused by accidental power failure.







● Smart Column Holder

Column holder with touchpad could achieve automatic fixing of the flash column.*



● Separation Method Recommendation

The software has a built-in separation method database that automatically recommends the most appropriate separation method based on the key information entered by the user, thereby improving work efficiency.







● Fraction Collector

Tube racks with LCD display enable users to easily track the tubes containing collected fractions.





● Local Network Data Sharing

Multiple instruments could form a local area network to facilitate internal data sharing and resourceoptimization in the laboratory.





● RFID Technology

Automatic identification of current flash column information based on RFID technology, facilitatingthe use and

maintenance of the columns.**







● 21-CFR Part 11 Compliance

The control software complies with FDA requirements for system safety (21-CFR Part 11), making theinstrument more

suitable for pharmaceutical R&D companies and laboratories.



Model	SepaBean machine U
Flow Range	1 - 100 mL/min (U100)
	1 - 200 mL/min (U200)
Maximum Pressure	100 psi (6.9 bar, U100)
	200 psi (13.8 bar, U200)
Pumping System	Highly accurate, maintenance free ceramic pump
Gradients	Two solvents, binary
Detector	Fixed wavelength (254 nm, optional other wavelength) or  DAD variable UV (200 - 400 nm) or  DAD vairable UV (200 - 400 nm) + Vis (400 - 800 nm)
Sample Loading Capacity	10 mg - 33 g
Column Sizes	4 g - 330 g, up to 3 kg with adapters





 ※  기타 규격

 •   Gradient types : isocratic, linear, step

 •   Flowcell optical path length : 0.3 mm (default); 2.4 mm (optional)

 •   Spectral display : single/dual/all-wavelengths*

 •   Sample loading metmethod : manual load

 •   Fraction collection method : all, waste, threshold, slope, time

 •   Fraction collector

     - Standard : tubes (13 mm, 15 mm,18 mm, 25 mm)

     - Optional : Frencth square bottle (250 mL, 500 mL) orlarge collection bottle; Customizable collection container

 •   Control device : wireless operation through mobile devices**

 •   Certificate : CE, cTUVus (in process)



 * 전체 파장 스캐닝 기능은 SepaBean™machine U 와 T 에는 적용 되어 있지 않습니다.

 ** RFID 모듈은 SepaBean™machine U 와 T 에는 적용 되어 있지 않습니다.

Product Name	Item #	Description
SepaBean machine U100	SPBU1000100-0	Maintenance free ceramic pump, 2 solvent lines, binary gradient, fixed wavelength (254nm) DAD UV detector, max pressure 100psi, max flow rate 100mL/min
	SPBU1000100-1	Maintenance free ceramic pump, 2 solvent lines, binary gradient, 200-400nm DAD UV detector, max pressure 100psi, max flow rate 100mL/min
	SPBU1000100-2	Maintenance free ceramic pump, 2 solvent lines, binary gradient, 200-800nm DAD UV detector, Max pressure 100psi, Max flow rate 100mL/min
SepaBean machine U200	SPBU2000200-0	Maintenance free ceramic pump, 2 solvent lines, binary gradient, fixed wavelength (254nm) DAD UV detector, max pressure 200psi, max flow rate 200mL/min
	SPBU2000200-1	Maintenance free ceramic pump, 2 solvent lines, binary gradient, 200-400nm DAD UV detector, max pressure 200psi, max flow rate 200mL/min
	SPBU2000200-2	Maintenance free ceramic pump, 2 solvent lines, binary gradient, 200-800nm DAD UV detector, max pressure 200psi, max flow rate 200mL/min
