GVM-MULTI / Multi Tube Vortex Mixer
제품명: GVM-MULTI / Multi Tube Vortex Mixer
용도:
메이커: Globe Scientific
카달로그: 다운로드


소개





사양

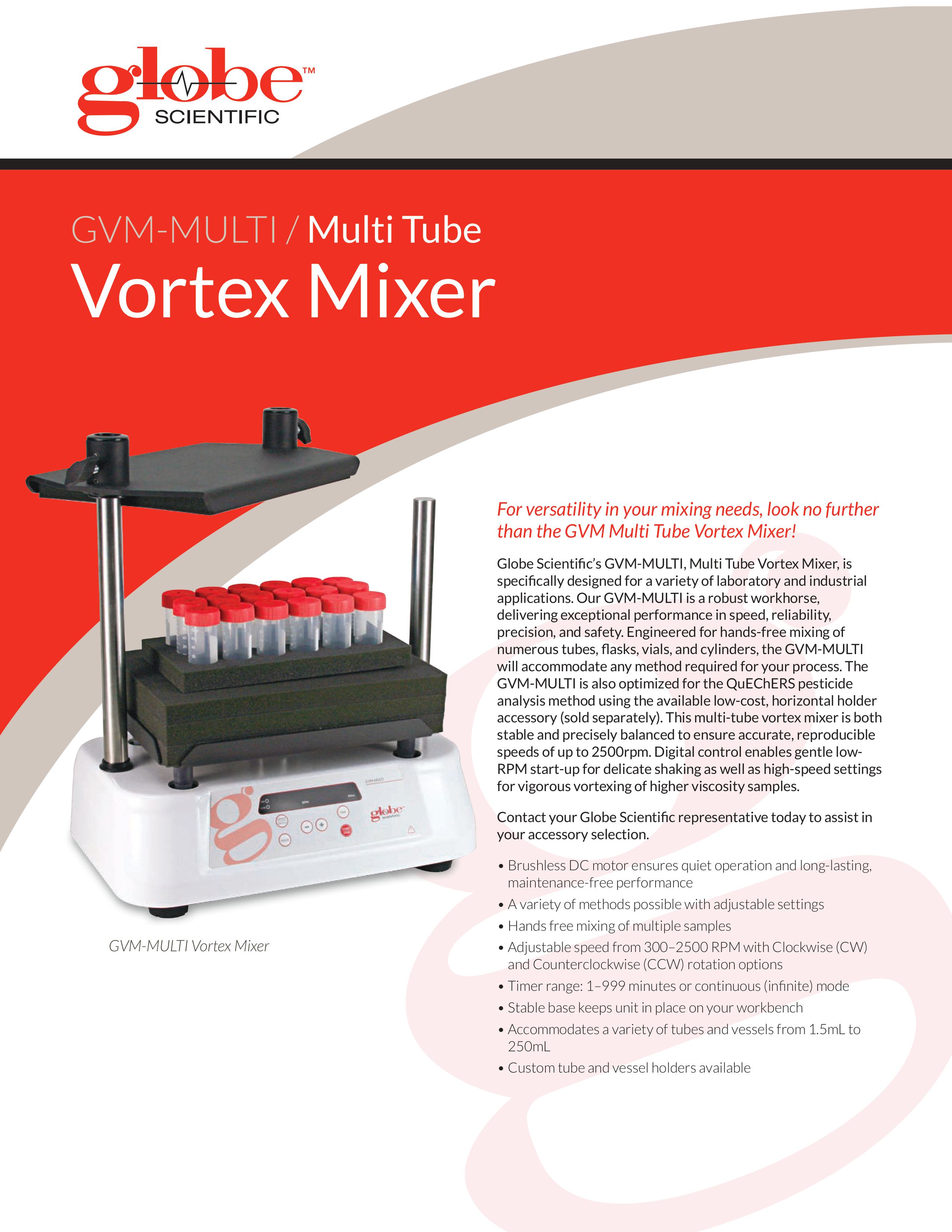

Globe Scientific’s GVM-MULTI, Multi Tube Vortex Mixer, is specifically designed for a variety of laboratory and industrial applications.

Our GVM-MULTI is a robust workhorse, delivering exceptional performance in speed, reliability, precision, and safety.

Engineered for hands-free mixing of numerous tubes, flasks, vials, and cylinders, the GVM-MULTI will accommodate any method required for your process.

The GVM-MULTI is also optimized for the QuEChERS pesticide analysis method using the available low-cost, horizontal holder accessory (sold separately).

This multi-tube vortex mixer is both stable and precisely balanced to ensure accurate, reproducible speeds of up to 2500rpm.

Digital control enables gentle lowRPM start-up for delicate shaking as well as high-speed settings for vigorous vortexing of higher viscosity samples.



Features:

  • Brushless DC motor ensures quiet operation and long-lasting, maintenance-free performance
  • A variety of methods possible with adjustable settings
  • Hands free mixing of multiple samples
  • Adjustable speed from 300–2500 RPM with Clockwise (CW) and Counterclockwise (CCW) rotation options
  • Timer range: 1–999 minutes or continuous (infinite) mode
  • Stable base keeps unit in place on your workbench
  • Accommodates a variety of tubes and vessels from 1.5mL to 250mL
  • Custom tube and vessel holders available



Attachment Options Include Foam Insert for :

  • 1.5/2 mL tubes – holds 72 tubes
  • 7 mL tubes – holds 60 tubes
  • 15 mL tubes – holds 45 tubes
  • 50 mL tubes – holds 18 tubes
  • 50 mL tubes (QuEChERS assay) – holds 7 tubes
  • 250 mL flasks – holds 6 flasks

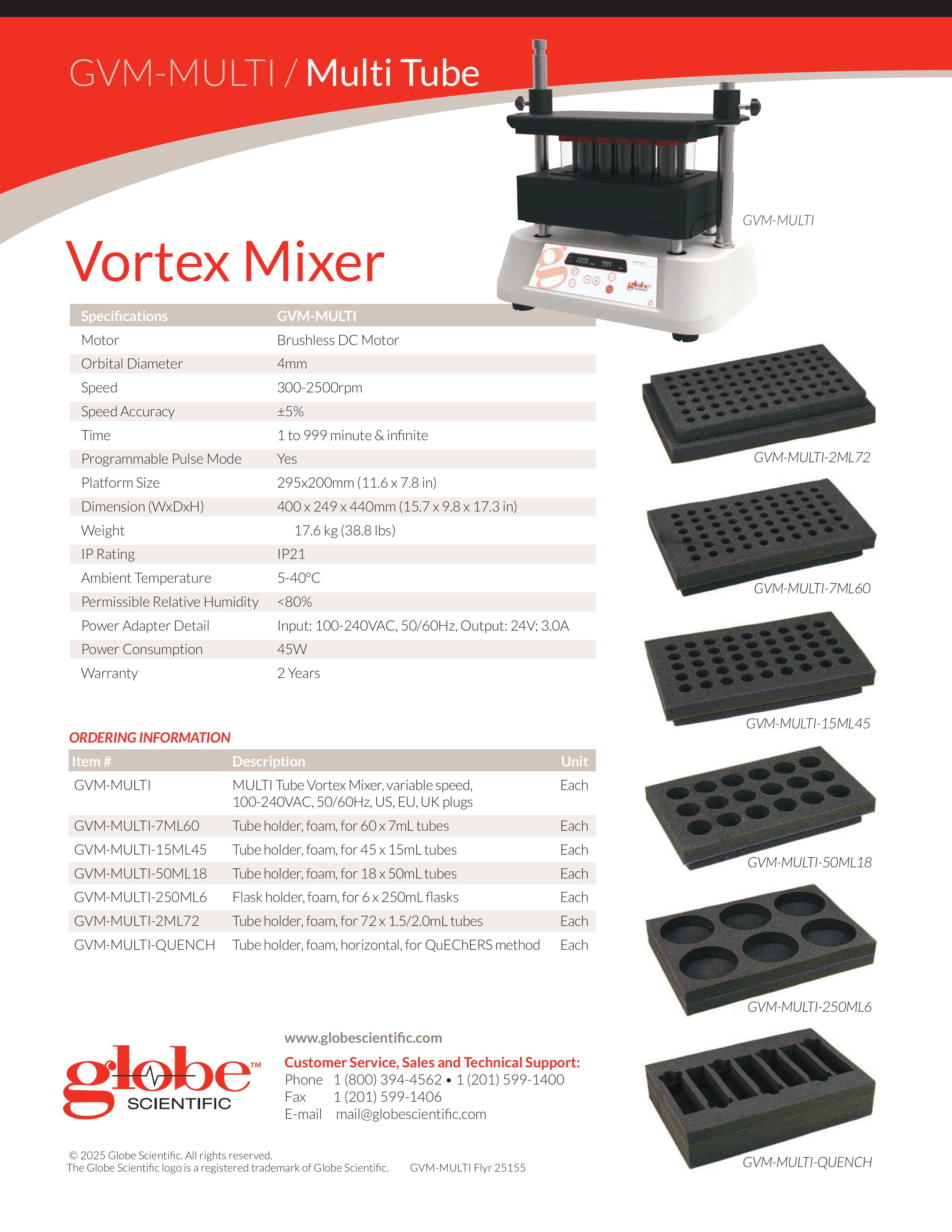

Specifications GVM-MULTI
Motor Brushless DC Motor
Orbital Diameter 4mm
Speed 300 - 2500rpm
Speed Accuracy +/- 5%
Time 1 to 999 minute & infinite
Programmable Pulse Mode Yes
Platform Size 295 x 200mm
(11.6 x 7.8")
Dimensions (WxDxH) 400 x 249 x 440mm
(15.7 x 9.8 x 17.3")
Weight 17.6 kg (38.8 lbs)
IP Rating IP21
Ambient Temperature 5 - 40°C
Permissible Relative Humidity <80%
Power Adapter Detail Input: 100-240VAC, 50/60Hz
Output: 24V; 3.0A
Power Consumption 45W
Warranty 2 Years

주문정보



GVM-MULTI MULTITube Vortex Mixer, variable speed, 100-240VAC, 50/60Hz, US, EU, UK plugs Each
GVM-MULTI-2ML72 Tubeholder, foam, 72 x 1.5/2.0mL tubes, for GVM-MULTI Each
GVM-MULTI-7ML60 Tubeholder, foam, 60 x 7ml tubes, for GVM-MULTI Each
GVM-MULTI-15ML45 Tubeholder, foam, 45 x 15ml tubes, for GVM-MULTI Each
GVM-MULTI-50ML18 Tubeholder, foam, 18 x 50ml tubes, for GVM-MULTI Each
GVM-MULTI-250ML6 Flaskholder, foam, 6 x 250ml flasks, for GVM-MULTI Each
GVM-MULTI-QUENCH Tubeholder, foam, horizontal-50ml tubes QuEChERS test, for GVM-MULTI Each
