EXP® Guard Column Cartridges: 제품명: EXP® Guard Column Cartridges; 용도: Up to 20,000+psi - UHPLC; 메이커: Optimize Technologies; 카달로그:

소개
사양
주문정보
관련자료

소개

Details

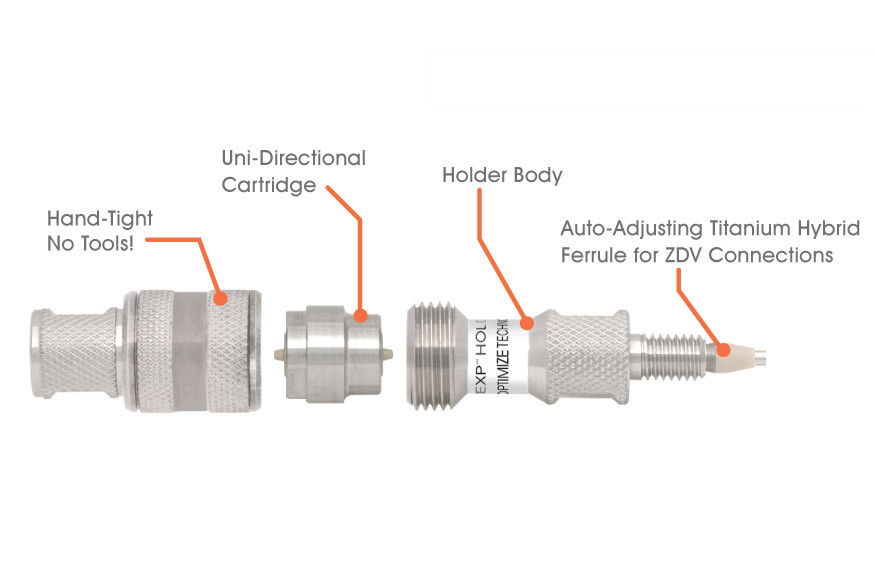

The EXP® Guard Column cartridge system is rated to 15,000 psi with hand-tight replaceable cartridges. This unique design connects directly to any UHPLC column with the auto-adjusting Titanium Hybrid Ferrule and EXP® Fittings, providing repeated zero-dead-volume connections and easy adjustability between various column types. Free-Turn¨ architecture allows the user to change cartridges by hand without breaking fluid connections on the holder inlet/ outlet. The combination of low-dispersion and ultra high-pressure capabilities provides effective protection with negligible effects on retention time, plate count, and peak shape. For use with EXP® Direct Connect Holder 15-02-03956 and EXP® In-Line Holder 15-02-03946.

Key Features

• Includes 3 uni-directional cartridges

• Rated for routine use at 15,000 psi (1,000 bar)

• 1.4 uL Swept Volume (excluding packed bed)

• Low-volume/ low-dispersion cartridges

• Provides effective protection with negligible effects

• Hand-tight guard replacement = NO TOOLS!

• Custom packing available

Compatible Cartridges & Holder Options

• EXP® Trap Column Cartridges

• EXP® Direct Connect Holder

• EXP® In-Line Holder

• EXP® All-In-One Holder Kit

• EXP® Discovery Kit

사양

Pressure Rating

up to 20,000+psi - UHPLC

주문정보

Part Number	Dementions	Particle Size	Phase
15-04100-HA	1.0 x 5 mm	1.8 μm	C18
15-04100-HB	1.0 x 5 mm	1.8 μm	C8
15-04100-HC	1.0 x 5 mm	1.8 μm	C4
15-04100-HD	1.0 x 5 mm	1.8 μm	HILIC

15-04100-HE	1.0 x 5 mm	3 μm	C18
15-04100-HF	1.0 x 5 mm	3 μm	C8
15-04100-HG	1.0 x 5 mm	3 μm	C4
15-04100-HH	1.0 x 5 mm	3 μm	HILIC
15-04100-HI	1.0 x 5 mm	3 μm	Phenyl-Hexyl
15-04100-HJ	1.0 x 5 mm	3 μm	SAX
15-04100-HK	1.0 x 5 mm	3 μm	SCX

15-04102-HA	1.5 x 5 mm	1.8 μm	C18
15-04102-HB	1.5 x 5 mm	1.8 μm	C8
15-04102-HC	1.5 x 5 mm	1.8 μm	C4
15-04102-HD	1.5 x 5 mm	1.8 μm	HILIC

15-04102-HE	1.5 x 5 mm	3 μm	C18
15-04102-HF	1.5 x 5 mm	3 μm	C8
15-04102-HG	1.5 x 5 mm	3 μm	C4
15-04102-HH	1.5 x 5 mm	3 μm	HILIC
15-04102-HI	1.5 x 5 mm	3 μm	Phenyl-Hexyl
15-04102-HJ	1.5 x 5 mm	3 μm	SAX
15-04102-HK	1.5 x 5 mm	3 μm	SCX

15-04104-HE	2.1 x 5 mm	3 μm	C18
15-04104-HF	2.1 x 5 mm	3 μm	C8
15-04104-HG	2.1 x 5 mm	3 μm	C4
15-04104-HH	2.1 x 5 mm	3 μm	HILIC
15-04104-HI	2.1 x 5 mm	3 μm	Phenyl-Hexyl
15-04104-HJ	2.1 x 5 mm	3 μm	SAX
15-04104-HK	2.1 x 5 mm	3 μm	SCX

15-04106-HA	3.0 x 5 mm	1.8 μm	C18
15-04106-HB	3.0 x 5 mm	1.8 μm	C8
15-04106-HC	3.0 x 5 mm	1.8 μm	C4
15-04106-HD	3.0 x 5 mm	1.8 μm	HILIC

15-04106-HE	3.0 x 5 mm	3 μm	C18
15-04106-HF	3.0 x 5 mm	3 μm	C8
15-04106-HG	3.0 x 5 mm	3 μm	C4
15-04106-HH	3.0 x 5 mm	3 μm	HILIC
15-04106-HI	3.0 x 5 mm	3 μm	Phenyl-Hexyl
15-04106-HJ	3.0 x 5 mm	3 μm	SAX
15-04106-HK	3.0 x 5 mm	3 μm	SCX

15-04108-HA	4.6 x 5 mm	1.8 μm	C18
15-04108-HB	4.6 x 5 mm	1.8 μm	C8
15-04108-HC	4.6 x 5 mm	1.8 μm	C4
15-04108-HD	4.6 x 5 mm	1.8 μm	HILIC

15-04108-HE	4.6 x 5 mm	3 μm	C18
15-04108-HF	4.6 x 5 mm	3 μm	C8
15-04108-HG	4.6 x 5 mm	3 μm	C4
15-04108-HH	4.6 x 5 mm	3 μm	HILIC
15-04108-HI	4.6 x 5 mm	3 μm	Phenyl-Hexyl
15-04108-HJ	4.6 x 5 mm	3 μm	SAX
15-04108-HK	4.6 x 5 mm	3 μm	SCX
